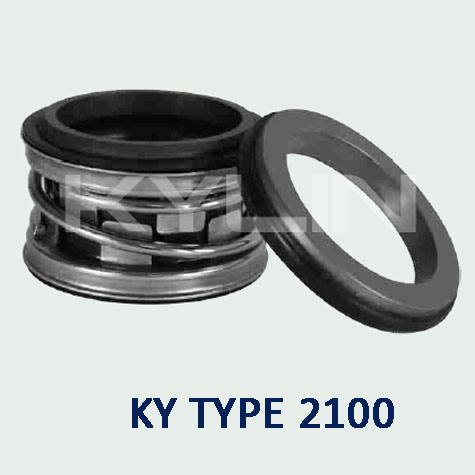

KY TYPE 2100

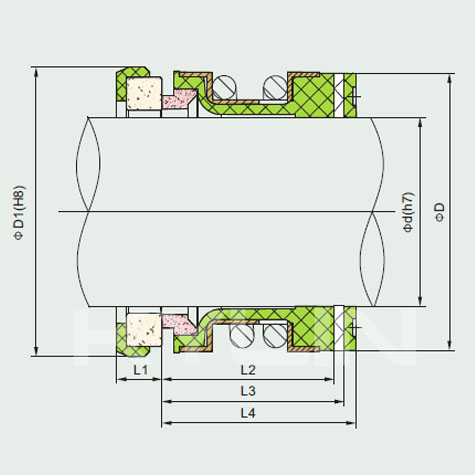

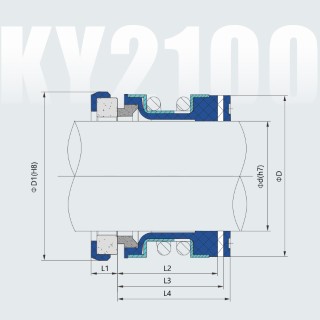

KY TYPE 2100, John Crane TYPE 2100, Elastomer Bellow Shaft Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -40°C~150°C
Pressure: ≤1.2MPa
Speed: ≤ 13 m/Sec

Catalog - TYPE 2100
