KY TYPE 70

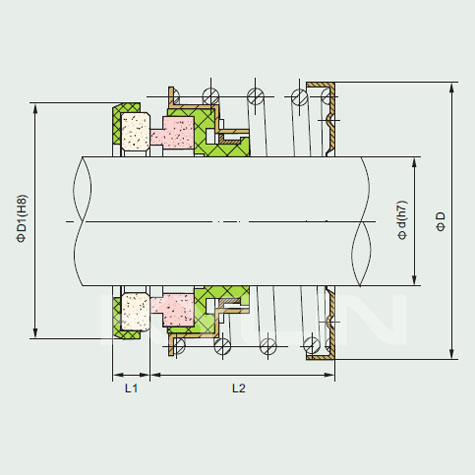

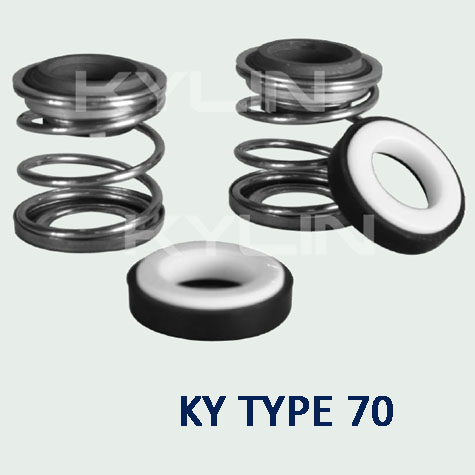

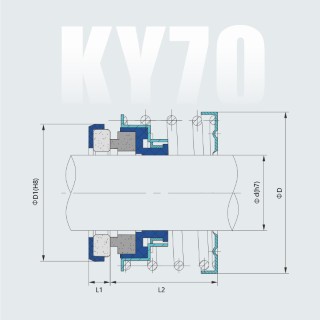

KY TYPE 70, Elastomer Bellow Shaft Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Pumps: Submersible pumps and common multi-stage deep well pumps.
Temperature: -20°C~110°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Catalog - TYPE 70
