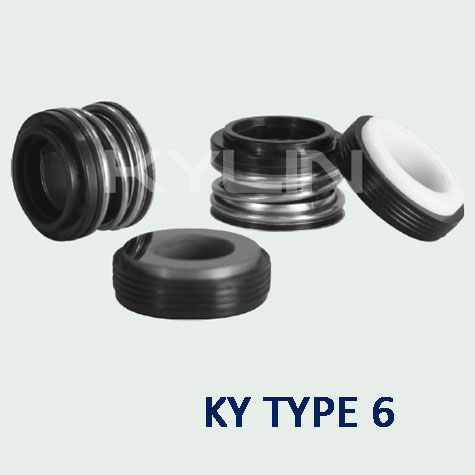

KY TYPE 6

KY TYPE 6, John Crane TYPE 6, PAC-SEAL TYPE 16, US SEAL TYPE A, SEALOL TYPE 6, Elastomer Bellow Shaft Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Mediums: Water, oil and weakly-corrosive mediums.
Temperature: -20°C~200°C
Pressure: ≤0.5MPa
Speed: ≤ 12 m/Sec

Catalog - TYPE 6
