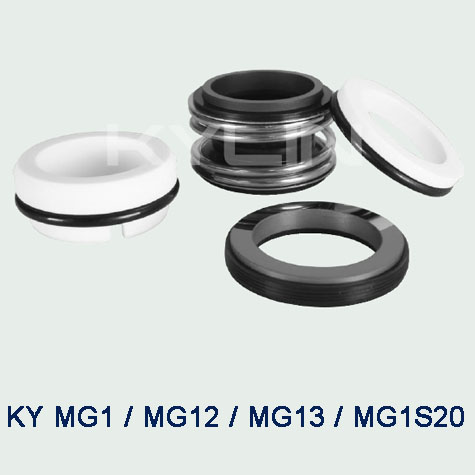

KY MG1/MG12/MG13/MG1S20, Burgmann MG1/MG12/MG13/MG1S20, Elastomer Bellow Shaft Seals
Combined Materials:
- Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
- Rotary Ring: Carbon/SiC/SSiC/TC
- Secondary Seal: NBR/EPDM/Viton
- Spring and Punched Parts: SS304/SS316
Working Conditions:
- Pumps: All types of rotating equipment, such as centrifugal pumps, agitators, for most general and light chemical duties, wherever an elastomer Secondary Seal can be used.
- Temperature: -30°C~200°C
- Pressure: ≤1.2MPa
- Speed: ≤ 12 m/Sec

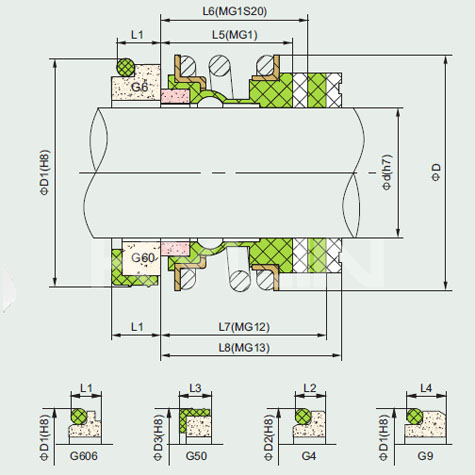

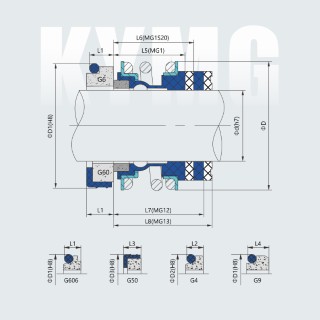

- Design feature: Elastomeric bellows seal design including kinds of statconary ring, complying with DIN24960 and ISO3069, combined with P60, P50, t6, t4, T9, C606, etc.
