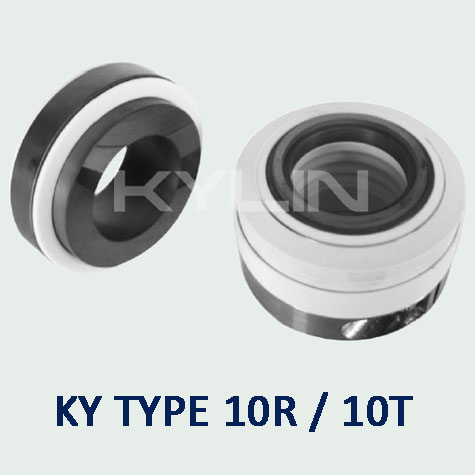

KY TYPE 10R /10T

KY TYPE 10R /10T

KY TYPE 10R /10T

KY TYPE 10R, KY TYPE 10T, John Crane TYPE 10R, John Crane TYPE 10T, Teflon Bellow Mechanical Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC
Rotary Ring: Teflon/SiC/SSiC
Secondary Seal: Teflon
Spring and Metal Part: SS304/SS316

Working Conditions:

Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
Temperature: -40°C~250°C
Pressure: ≤2.5MPa
Speed: ≤ 20 m/Sec

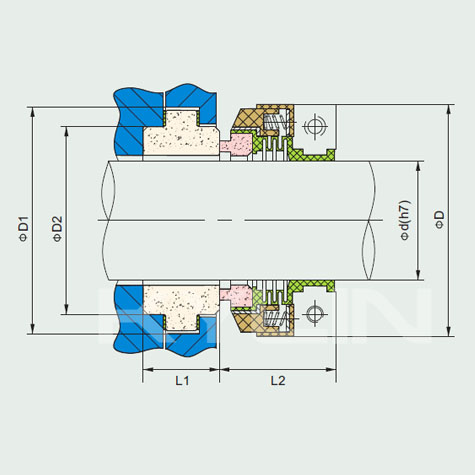

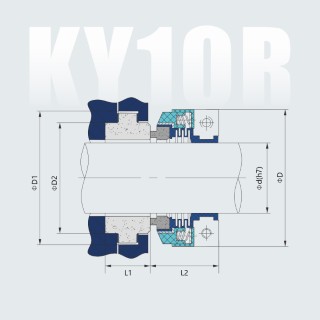

Catalog - TYPE 10R /10T
