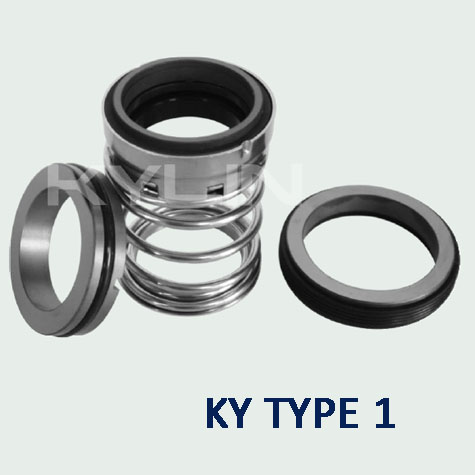

KY TYPE 1, John Crane TYPE 1, Elastomer Bellow Shaft Seals
Combined Materials:
- Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
- Rotary Ring: Carbon/SiC/SSiC/TC
- Secondary Seal: NBR/EPDM/Viton
- Spring and Punched Parts: SS304/SS316
Working Conditions:
- Mediums: Water, oil, and weakly-corrosive mediums.
- Temperature: -20°C~150°C
- Pressure: ≤1MPa
- Speed: ≤ 12 m/Sec
