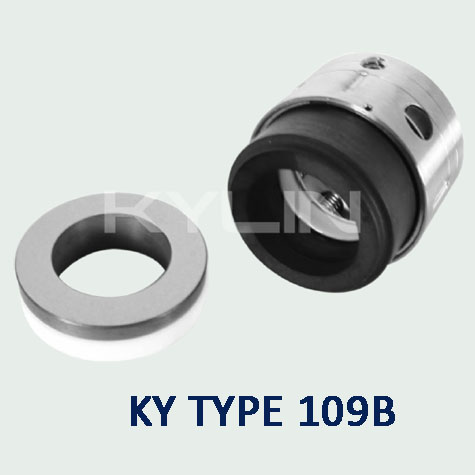

KY TYPE 109B

KY TYPE 109B, John Crane TYPE 109B, PTFE Wedge Mechanical Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: Teflon
Spring and Metal Part: SS304/SS316

Working Conditions:

Mediums: Petroleum, chemical solvents, weak and medium acids, etc.
Temperature: -40°C~250°C
Pressure: ≤2.5MPa
Speed: ≤ 20 m/Sec

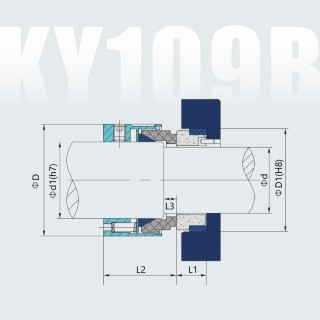

Catalog - TYPE 109B
