KY M74-D

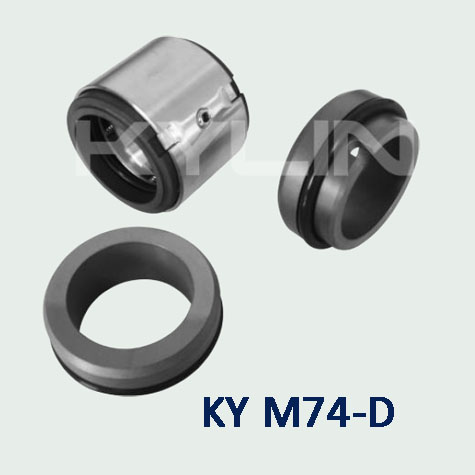

KY M74-D, Burgmann M74-D, Double Mechanical Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Mediums: Muddy water, sewage water and weakly corrosive fluids with solid grains.
Temperature: -20°C~180°C
Pressure: ≤1MPa
Speed: ≤ 10 m/Sec

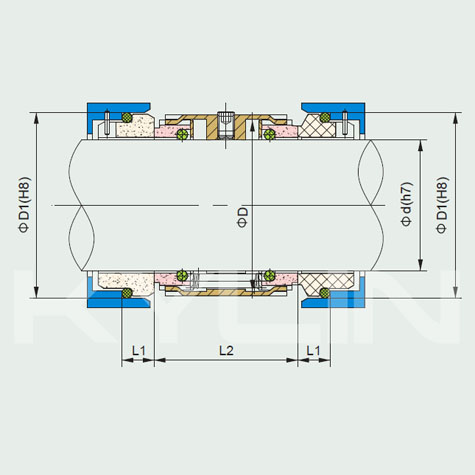

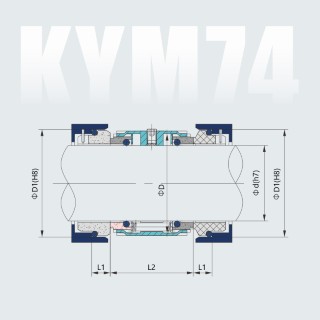

Catalog - KY M74-D
