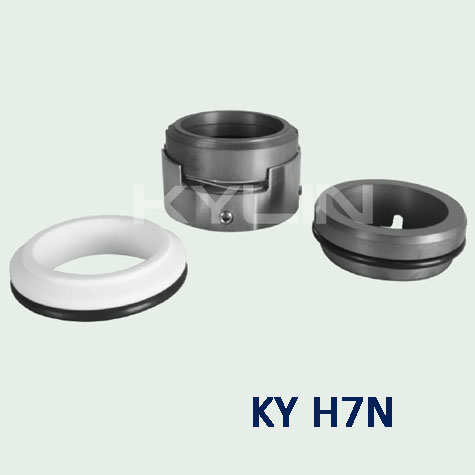

KY H7N

KY H7N, Burgmann H7N, O Ring Mechanical Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Metal Part: SS304/SS316

Working Conditions:

Mediums: Water, oil, acid, alkali with low corrosion, etc.
Temperature: -20°C~200°C
Pressure: ≤2.5MPa
Speed: ≤ 18 m/Sec

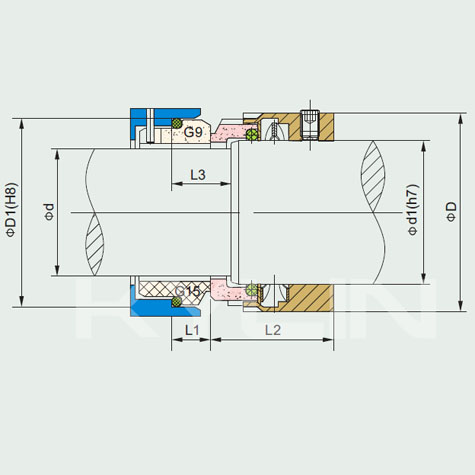

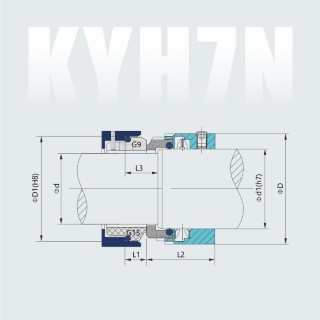

Catalog - H7N
