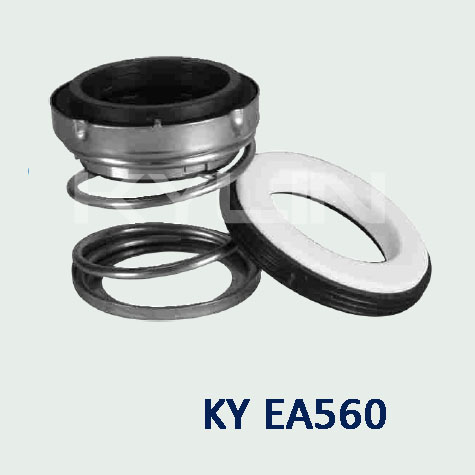

KY EA560

KY EA560, EagleBurgmann EA560, Elastomer Bellow Shaft Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Mediums: Water, oil, and weakly-corrosive mediums.
Temperature: -20°C~150°C
Pressure: ≤0.8MPa
Speed: ≤ 10 m/Sec

Catalog - EA560
