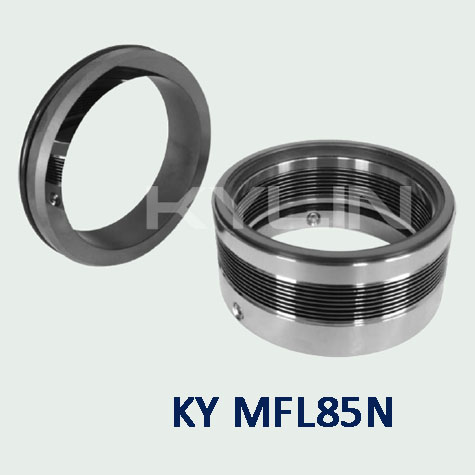

KY MFL85N

KY MFL85N, Burgmann MFL85N, Welded Metal Bellow Mechanical Seals

Combined Materials:

Stationary Ring: SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Bellow: AM350/Inconel 718
Metal Part: SS304/SS316

Working Conditions:

Mediums: Oil, light hydrocarbon, aromatic hydrocarbon, organic solvents, weak acids, alkali, Ammonia, etc.
Temperature: -20°C~200°C
Pressure: ≤2.0MPa
Speed: ≤ 23 m/Sec

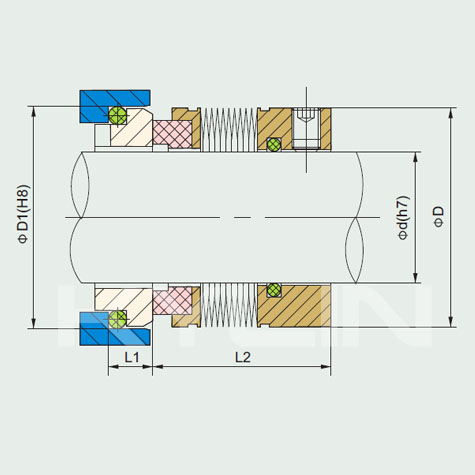

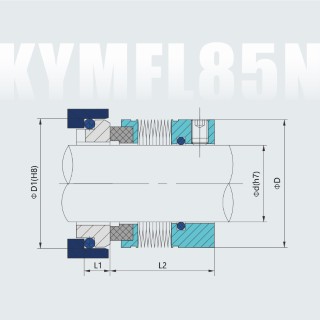

Catalog - KY MFL85N
