KY TYPE 2

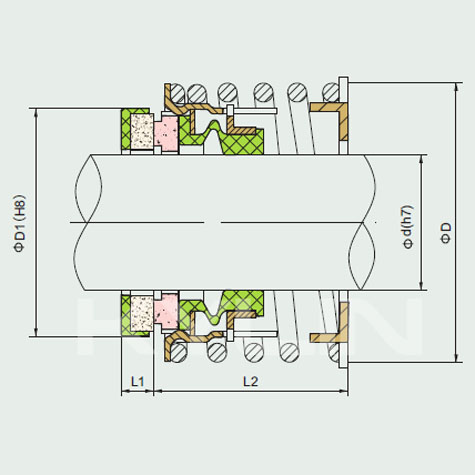

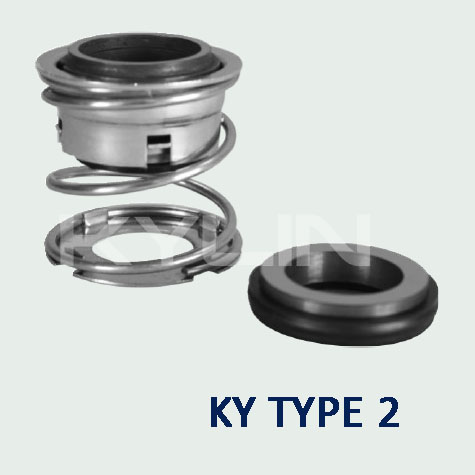

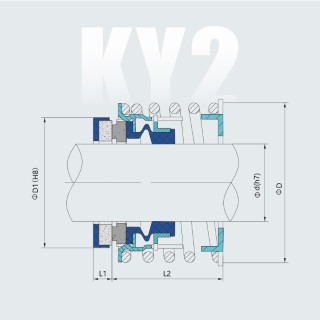

KY TYPE 2, John Crane TYPE 2, Elastomer Bellow Shaft Seals

Combined Materials:

Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: NBR/EPDM/Viton
Spring and Punched Parts: SS304/SS316

Working Conditions:

Mediums: Water, oil, weak acids, weak alkali, etc.
Temperature: -20°C~100°C
Pressure: ≤1MPa
Speed: ≤ 12 m/Sec

Catalog - TYPE 2
