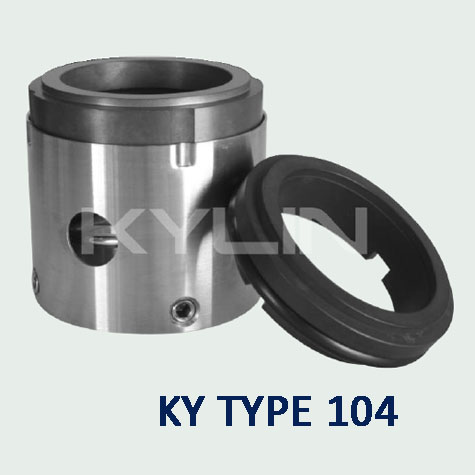

KY TYPE 104, O Ring Mechanical Seals
Combined Materials:
- Stationary Ring: Carbon/SiC/SSiC/TC
- Rotary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC/TC
- Secondary Seal: NBR/EPDM/Viton
- Spring and Metal Part: SS304/SS316
Working Conditions:
- Mediums: Water, oil, weak acid, weak alkali, etc.
- Temperature: -20°C~200°C
- Pressure: ≤1MPa
- Speed: ≤ 15 m/Sec
