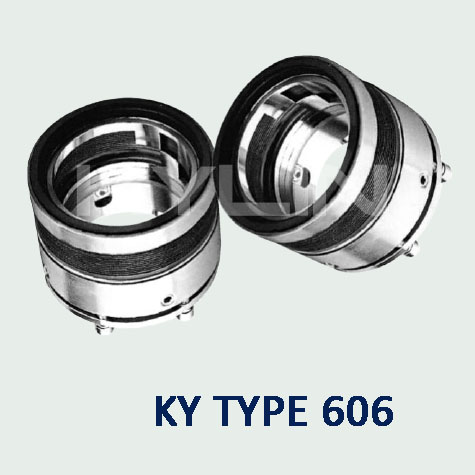

KY TYPE 606

KY TYPE 606, John Crane TYPE 606, Welded Metal Bellow Mechanical Seals

Combined Materials:

Stationary Ring: SiC/SSiC/TC
Rotary Ring: Carbon/SiC/SSiC/TC
Secondary Seal: Graphite
Bellow: AM350/Inconel 718
Metal Part: SS304/SS316

Working Conditions:

Mediums: Oil, light hydrocarbon, aromatic hydrocarbon, organic solvents, weak acids, alkali, Ammonia, etc.
Temperature: -75°C~400°C
Pressure: ≤2.0MPa(Single) ≤6.0MPa(Double)
Speed: ≤ 23 m/Sec

Catalog - TYPE 606
