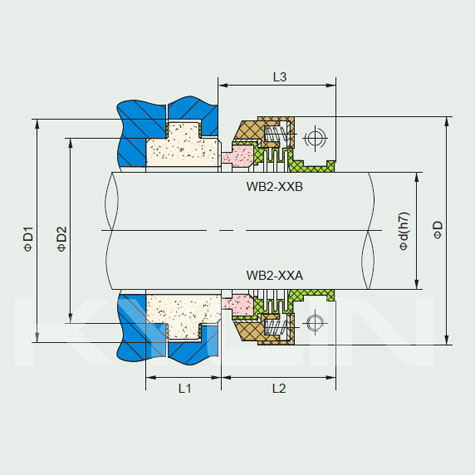

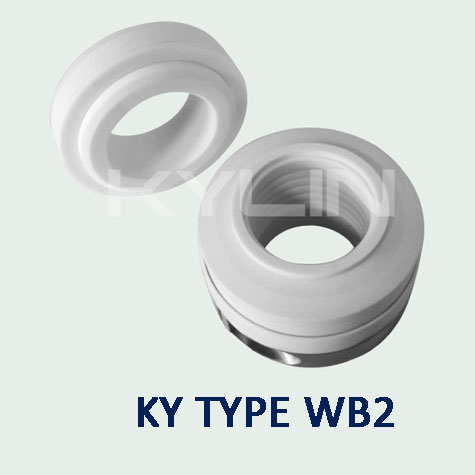

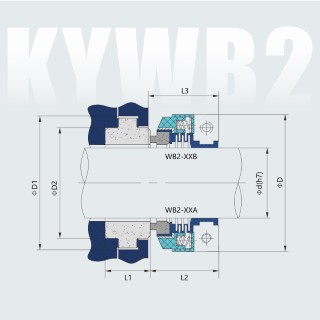

KY TYPE WB2, Teflon Bellow Mechanical Seals
Combined Materials:
- Stationary Ring: Alumina 99%/Alumina 99.5%/SiC/SSiC
- Rotary Ring: Teflon/SiC/SSiC
- Secondary Seal: Teflon
- Spring and Metal Part: SS304/SS316
Working Conditions:
- Mediums: Sulfuric acid, hydrochloric acid, phosphoric acid, acetic acid, and nitric acid with various degrees, etc.
- Temperature: ≤120°C
- Pressure: ≤0.5MPa
- Speed: ≤ 10 m/Sec
